Product Details:
|
| Size: | 5950L*3000W*2800H Mm（Can Be Customized) | Frame: | Q235B Galvanized Steel |
|---|---|---|---|
| Wall: | 50/75mm Rockwool Sandwich Panel | Floor: | 18mm MGO/Cement Fiber Board |
| Roofing: | 40mm Glass Wool Insulation Layer | Anti-rust: | 110um Powder Coating+Galvanized |
| Painting: | Powder Coating | Color: | Customized |
| Installaion: | 4 Workers 2 Hours | Leadtime: | 7 Days |
| Wind Resistence: | 120KM/H | Anti-seismic: | Grade 8 |
| Highlight: | Flexible Container Temporary Housing,Flexible temporary modular homes,Removable Container Temporary Housing |
||
Detachable container is a fully demountable structure, which allows it to be loaded with far more quantity than other products, and also makes it can be customised to any size .
Installation
4 workers+2 hours = 1 unit
Packing
Frames: Bubble films wrapped
Loading
1*40HQ can load 17 units
Specifications
| Detachable container specifications | ||||||
| Specification | Length * width * height (mm) | Exterior Size:5950 × 3000 × 2800mm | ||||
| Roof form | Flat roof, drainage within the organization | |||||
| The layer number | ≤3layer | |||||
| Datas | Life time | 15 years | ||||
| Floor live load | 2.0KN/㎡ | |||||
| Roof live load | 0.7KN/㎡ | |||||
| Wind resistance | 120KM/H | |||||
| Anti earthquake standard | Grade 8 | |||||
| Item | Name | Unit | Qty | Length | Thickness | |
| Frame (all frame 110g galvanized technic) |
Top beam | Strip | 2 | 5630mm | 2.3mm | |
| Strip | 2 | 2680mm | ||||
| Bottom beam | Strip | 2 | 5630mm | |||
| Strip | 2 | 2680mm | ||||
| Column | Strip | 4 | 2480mm | |||
| Corner piece | pc | 8 | 160x160x160mm | 3.5mm | ||
| Slot | Galvanized buckle groove | Strip | 2 | 5730mm | 1.1mm | |
| Strip | 2 | 2800mm | ||||
| Top & Bottom purlin & square tube (galvanized technic) |
Bottom purlin | Strip | 9 | 50*100*2990mm | 1.2mm | |
| Top purlin | Strip | 2 | 50*50*2800mm | 1.5mm | ||
| Strip | 3 | 40*80*1880mm | 1.1mm | |||
| Strip | 6 | 40*60*1880mm | 1.0mm | |||
| Roof | 980 type pressed tile | pc | 6 | 2950mm | 0.5mm | |
| Ceilling | pc | 6 | 2800mm | 0.25mm | ||
| Floor | MGO Board | pc | 5 | 1147*2800mm | 18mm | |
| Flooring | PVC flooring | roll | 1 | 1.6mm | ||
| Wall panel | both sides color steel 50mm rock wool sandwich panel (Volumn weight: 60KG/m³) |
pc | 16 | 2560*950mm | 0.326mm | |
| Door | Fire proof steel doors | Set | 1 | 950*2035 mm | ||
| Window | UPVC sliding window | Set | 2 | 925*1200mm | ||
| Rub Tape | Rub Tape | pc | 1 | |||
| Roof insulation | 40mm glass wool insulation layer | Roll | 1 | |||
| Electric system | Distribution box including air opening, leakage protection |
pcs | 1 | |||
| Wirings 220-250Voltage 4㎡ for input 2.5㎡ for socket/AC 1.5㎡ for lights |
Set | 1 | ||||
| LED light, 36W | pcs | 2 | ||||
| Sockets 3 for sockets(10A) 1 for AC(16A) |
pcs | 4 | ||||
| Switch | pcs | 1 | ||||

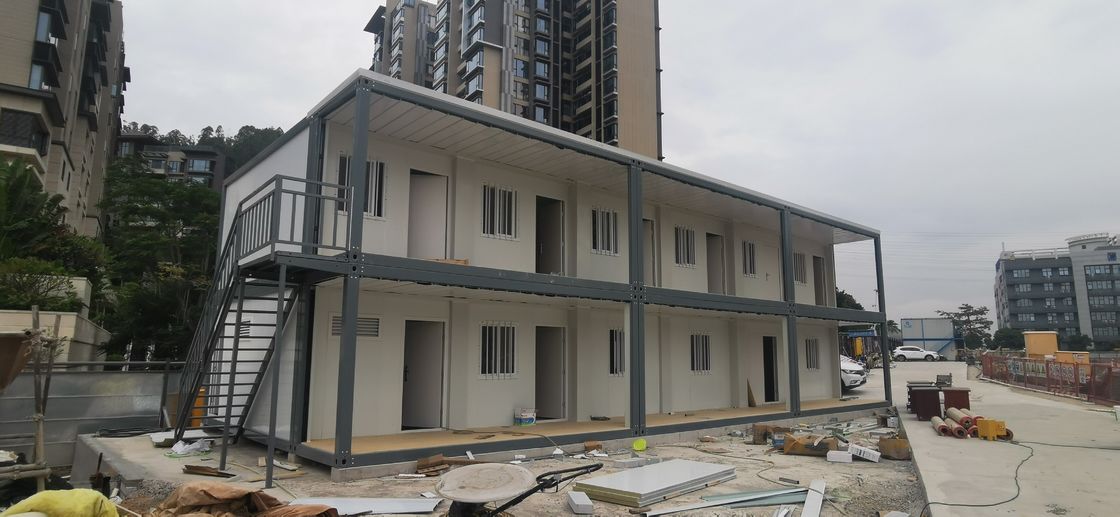

Projects
