Product Details
Place of Origin: China
Brand Name: BOX SPACE
Model Number: Detachable container
Payment & Shipping Terms
Minimum Order Quantity: 1 unit
Price: USD1295/unit
Packaging Details: Bubble films wrapped
Delivery Time: 7 days
Payment Terms: T/T
Supply Ability: 5000 units per month
Size: |
5950L*3000W*2800H Mm（Can Be Customized) |
Frame: |
Q235B Galvanized Steel |
Wall: |
50/75mm Rockwool Sandwich Panel |
Floor: |
18mm MGO/Cement Fiber Board |
Roofing: |
40mm Glass Wool Insulation Layer |
Anti-rust: |
110um Powder Coating+Galvanized |
Painting: |
Powder Coating |
Color: |
Customized |
Installaion: |
4 Workers 2 Hours |
Leadtime: |
7 Days |
Wind Resistence: |
120KM/H |
Anti-seismic: |
Grade 8 |
Size: |
5950L*3000W*2800H Mm（Can Be Customized) |
Frame: |
Q235B Galvanized Steel |
Wall: |
50/75mm Rockwool Sandwich Panel |
Floor: |
18mm MGO/Cement Fiber Board |
Roofing: |
40mm Glass Wool Insulation Layer |
Anti-rust: |
110um Powder Coating+Galvanized |
Painting: |
Powder Coating |
Color: |
Customized |
Installaion: |
4 Workers 2 Hours |
Leadtime: |
7 Days |
Wind Resistence: |
120KM/H |
Anti-seismic: |
Grade 8 |

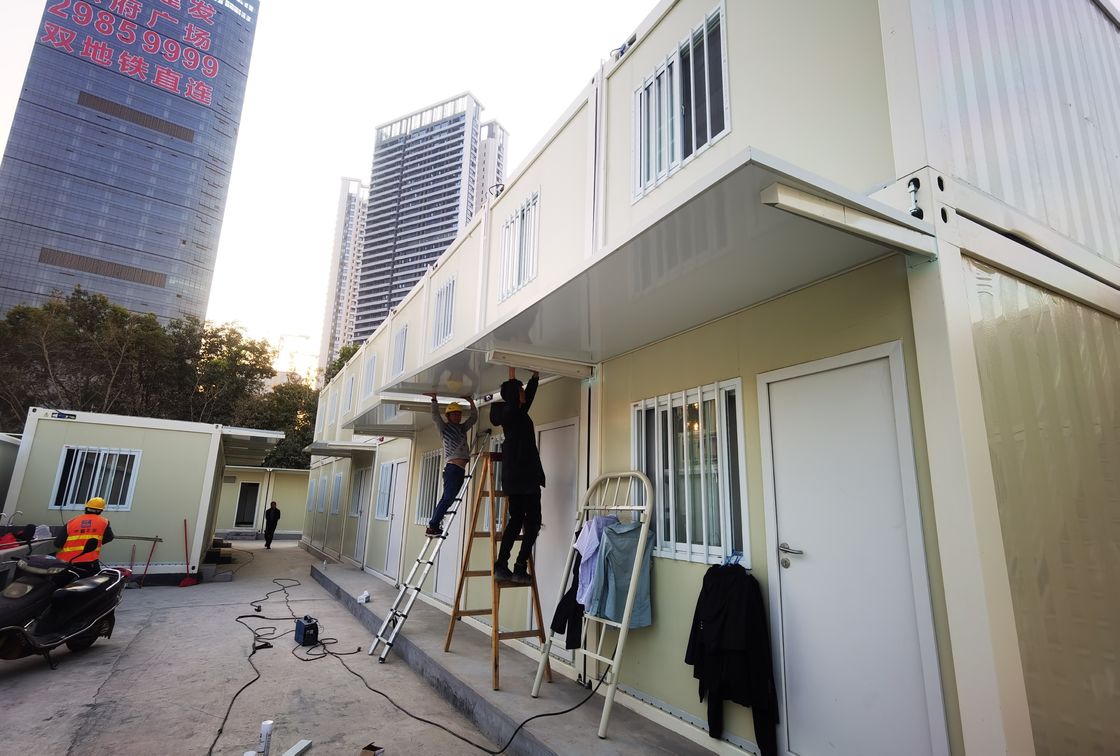

Customized 2-Bedroom Detachable Container Rental Student Apartment Dormitory
Detachable container is a fully demountable structure, which allows it to be loaded with far more quantity than other products, and also makes it can be customised to any size .
Installation
4 workers+2 hours = 1 unit
Packing
Frames: Bubble films wrapped
Loading
1*40HQ can load 17 units
Specifications
| Detachable container specifications | ||||||
| Specification | Length * width * height (mm) | Exterior Size:5950 × 3000 × 2800mm | ||||
| Roof form | Flat roof, drainage within the organization | |||||
| The layer number | ≤3layer | |||||
| Datas | Life time | 15 years | ||||
| Floor live load | 2.0KN/㎡ | |||||
| Roof live load | 0.7KN/㎡ | |||||
| Wind resistance | 120KM/H | |||||
| Anti earthquake standard | Grade 8 | |||||
| Item | Name | Unit | Qty | Length | Thickness | |
| Frame (all frame 110g galvanized technic) |
Top beam | Strip | 2 | 5630mm | 2.3mm | |
| Strip | 2 | 2680mm | ||||
| Bottom beam | Strip | 2 | 5630mm | |||
| Strip | 2 | 2680mm | ||||
| Column | Strip | 4 | 2480mm | |||
| Corner piece | pc | 8 | 160x160x160mm | 3.5mm | ||
| Slot | Galvanized buckle groove | Strip | 2 | 5730mm | 1.1mm | |
| Strip | 2 | 2800mm | ||||
| Top & Bottom purlin & square tube (galvanized technic) |
Bottom purlin | Strip | 9 | 50*100*2990mm | 1.2mm | |
| Top purlin | Strip | 2 | 50*50*2800mm | 1.5mm | ||
| Strip | 3 | 40*80*1880mm | 1.1mm | |||
| Strip | 6 | 40*60*1880mm | 1.0mm | |||
| Roof | 980 type pressed tile | pc | 6 | 2950mm | 0.5mm | |
| Ceilling | pc | 6 | 2800mm | 0.25mm | ||
| Floor | MGO Board | pc | 5 | 1147*2800mm | 18mm | |
| Flooring | PVC flooring | roll | 1 | 1.6mm | ||
| Wall panel | both sides color steel 50mm rock wool sandwich panel (Volumn weight: 60KG/m³) |
pc | 16 | 2560*950mm | 0.326mm | |
| Door | Fire proof steel doors | Set | 1 | 950*2035 mm | ||
| Window | UPVC sliding window | Set | 2 | 925*1200mm | ||
| Rub Tape | Rub Tape | pc | 1 | |||
| Roof insulation | 40mm glass wool insulation layer | Roll | 1 | |||
| Electric system | Distribution box including air opening, leakage protection |
pcs | 1 | |||
| Wirings 220-250Voltage 4㎡ for input 2.5㎡ for socket/AC 1.5㎡ for lights |
Set | 1 | ||||
| LED light, 36W | pcs | 2 | ||||
| Sockets 3 for sockets(10A) 1 for AC(16A) |
pcs | 4 | ||||
| Switch | pcs | 1 | ||||
