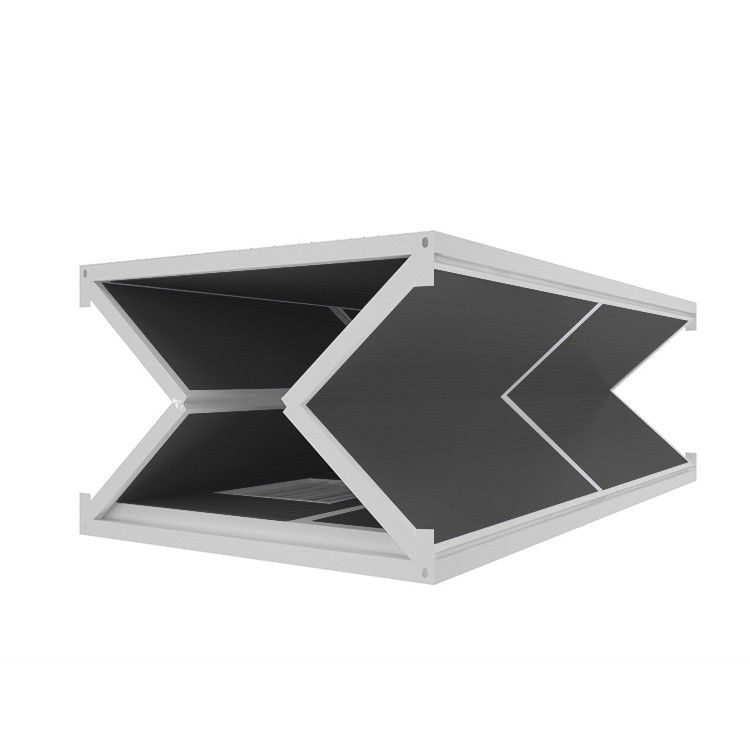

Expandable Fold Out Container House , Prefab 40ft Shipping Container Home

Product Details

Place of Origin: CHINA

Brand Name: BOX SAPCE

Model Number: Folding container house

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Price: USD1295/unit

Packaging Details: PVC films wrapped

Delivery Time: 7-14 days

Payment Terms: T/T

Supply Ability: 1000 units per month

Get Best Price
Contact Now
Specifications
Highlight:

40ft Shipping Container Home Prefab

,

40ft fold out container house

,

Expandable 40ft Shipping Container Home

Size:
5800L*2560W*2480H Mm
Frame:
Q235B Galvanized Steel
Wall:
50mm Rockwool Sandwich Panel
Floor:
15mm MGO Board
Roofing:
50mm Glass Wool Insulation Layer
Anti-rust:
110um Powder Coating+Galvanized
Painting:
Powder Coating
Color:
Customized
Installation:
3 Workers 5 Minutes
Leadtime:
7-14 Days
Wind Resistence:
120KM/H
Anti-seismic:
Grade 8
Size:
5800L*2560W*2480H Mm
Frame:
Q235B Galvanized Steel
Wall:
50mm Rockwool Sandwich Panel
Floor:
15mm MGO Board
Roofing:
50mm Glass Wool Insulation Layer
Anti-rust:
110um Powder Coating+Galvanized
Painting:
Powder Coating
Color:
Customized
Installation:
3 Workers 5 Minutes
Leadtime:
7-14 Days
Wind Resistence:
120KM/H
Anti-seismic:
Grade 8
Description
Expandable Fold Out Container House , Prefab 40ft Shipping Container Home

Expandable Prefabricated Folding Container Office Prefab 40ft Container Homes And Office Fold Out Module



FOLDING

CONTAINER HOUSE



BOX SPACE Folding container is a 100% prefabricated container house in factory, and its biggest highlight is that it can be installed in less than 5 minutes. The interior doors, windows, wirings, lights, sockets and switches are all pre-installed in advance.

It features a flat roof, insulation sandwich panel walls, a steel door and two windows. Installation is super easy and fast, making it the perfect choice for worker dormitory, site office, especially some emergency disaster like earth quake, tsunami, and even after-war rebuild, for those homeless people.



Features:

  • Loading: 1*40HQ can load 12 units
  • 100% Prefabriciated
  • 5 mintues install
  • Easy storage and transport
  • Female connectorwaterproof design



Structure:



Expandable Fold Out Container House , Prefab 40ft Shipping Container Home 0

Expandable Fold Out Container House , Prefab 40ft Shipping Container Home 1
Expandable Fold Out Container House , Prefab 40ft Shipping Container Home 2
Expandable Fold Out Container House , Prefab 40ft Shipping Container Home 3

Installation

3 workers + 5 mintues= 1 unit



Expandable Fold Out Container House , Prefab 40ft Shipping Container Home 4



Packing & Loading

1*40HQ can load 12 units



 Expandable Fold Out Container House , Prefab 40ft Shipping Container Home 5





Specifications

Item Material Specification Quantity Unit Thickness
Top frame Q235B Galvanizing square tube 60*80mm
t=1.5mm
4 pcs 1.5mm
Bottom frame Q235B Galvanizing square tube 60*80mm
t=2.0mm
4 pcs 2.0mm
Top secondary beam Q235B Galvanizing square tube 50*50mm
t=1.8mm
6 pcs 1.8mm
Bottom secondary beam Q235B Galvanizing square tube 40*80mm
t=2.0mm
9 pcs 2.0mm
Long side wall frame Q235B Galvanizing square tube 60*80mm
t=1.8mm
8 pcs 1.8mm
Short side wall frame Q235B Galvanizing square tube 60*80mm
t=1.8mm
8 pcs 1.8mm
Corner pieces 200mm*100mm t=15mm 8 pcs 15mm
Wall panel 50 mm rock wool sandwich panel
(Volume weight: 60KG/m³)
0.326mm both sides color steel     0.326mm
Roofing 75mm glass wool insulation layer steel plate, thickness=0.5mm 6 pcs 75mm
Ceiling steel plate t=0.326mm 6 pcs 0.326mm
Board MGO board t=15mm 5 pcs 15mm
Window aluminum alloy sliding window 950*1200mm 2 pcs
Door steel door 860*1980mm 1 pcs
electric appliance 1 switch, 4 sockets, two LED light tubes, disctribution box   1 set





Project cases:



Expandable Fold Out Container House , Prefab 40ft Shipping Container Home 6

Expandable Fold Out Container House , Prefab 40ft Shipping Container Home 7Expandable Fold Out Container House , Prefab 40ft Shipping Container Home 8

Expandable Fold Out Container House , Prefab 40ft Shipping Container Home 9



Support and Services:

BOX SPACE will offer a range of technical support and service options to ensure that your product is running at its peak performance. Our technical team experts are available to provide advice and assistance with any technical issues you may experience. And our customer service team is also available to answer any questions or concerns you may have regarding your purchase.
