Product Details
Place of Origin: CHINA
Brand Name: BOX SAPCE
Model Number: Folding container house
Payment & Shipping Terms
Minimum Order Quantity: 1 unit
Price: USD1295/unit
Packaging Details: PVC films wrapped
Delivery Time: 7-14 days
Payment Terms: T/T
Supply Ability: 1000 units per month
Size: |
5800L*2560W*2480H Mm |
Frame: |
Q235B Galvanized Steel |
Wall: |
50mm Rockwool Sandwich Panel |
Floor: |
15mm MGO Board |
Roofing: |
50mm Glass Wool Insulation Layer |
Anti-rust: |
110um Powder Coating+Galvanized |
Painting: |
Powder Coating |
Color: |
Customized |
Installation: |
3 Workers 5 Minutes |
Leadtime: |
7-14 Days |
Wind Resistence: |
120KM/H |
Anti-seismic: |
Grade 8 |
Size: |
5800L*2560W*2480H Mm |
Frame: |
Q235B Galvanized Steel |
Wall: |
50mm Rockwool Sandwich Panel |
Floor: |
15mm MGO Board |
Roofing: |
50mm Glass Wool Insulation Layer |
Anti-rust: |
110um Powder Coating+Galvanized |
Painting: |
Powder Coating |
Color: |
Customized |
Installation: |
3 Workers 5 Minutes |
Leadtime: |
7-14 Days |
Wind Resistence: |
120KM/H |
Anti-seismic: |
Grade 8 |
Temporary Fast Install 20ft foldable Flat Pack Prefab Container House Prefabricate Tiny Houses For Worker Camp Office
FOLDING

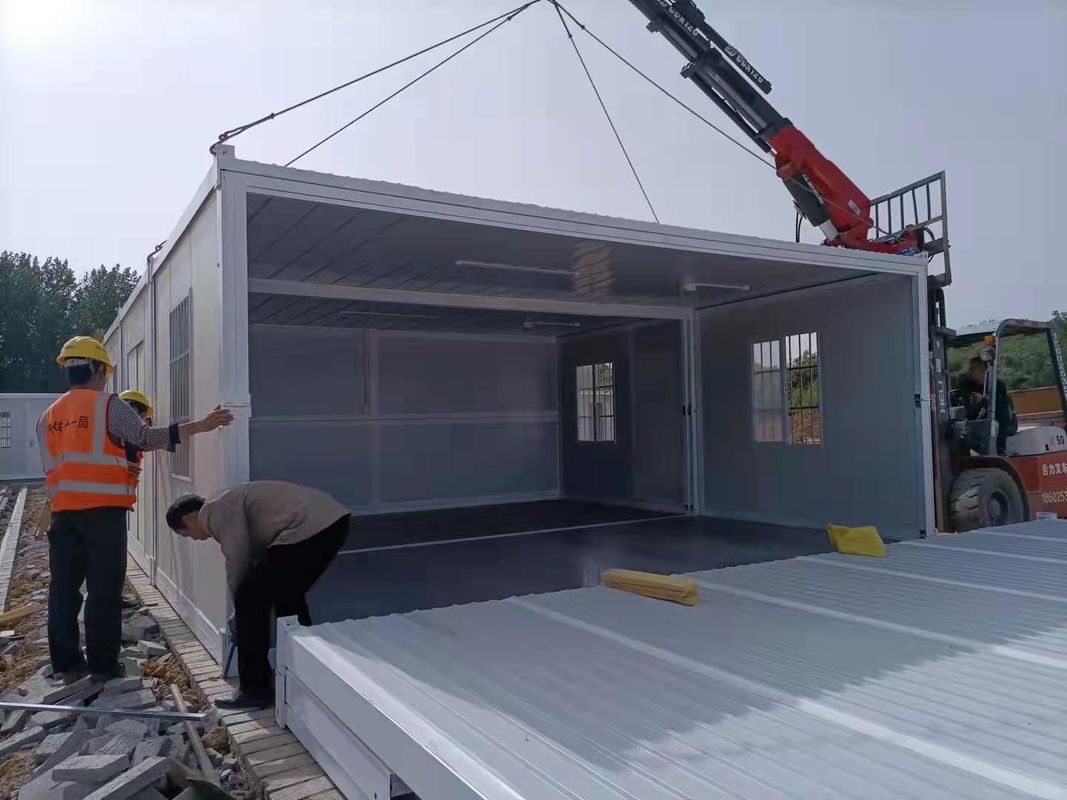

BOX SPACE Folding container is a 100% prefabricated container house in factory, and its biggest highlight is that it can be installed in less than 5 minutes. The interior doors, windows, wirings, lights, sockets and switches are all pre-installed in advance.
It features a flat roof, insulation sandwich panel walls, a steel door and two windows. Installation is super easy and fast, making it the perfect choice for worker dormitory, site office, especially some emergency disaster like earth quake, tsunami, and even after-war rebuild, for those homeless people.
Structure:
3 workers + 5 mintues= 1 unit
PACKING & LOADING
1*40HQ can load 12 units
SPECIFICATIONS
| Item | Material | Specification | Quantity | Unit | Thickness | ||
| Top frame | Q235B Galvanizing square tube | 60*80mm t=1.5mm |
4 | pcs | 1.5mm | ||
| Bottom frame | Q235B Galvanizing square tube | 60*80mm t=2.0mm |
4 | pcs | 2.0mm | ||
| Top secondary beam | Q235B Galvanizing square tube | 50*50mm t=1.8mm |
6 | pcs | 1.8mm | ||
| Bottom secondary beam | Q235B Galvanizing square tube | 40*80mm t=2.0mm |
9 | pcs | 2.0mm | ||
| Long side wall frame | Q235B Galvanizing square tube | 60*80mm t=1.8mm |
8 | pcs | 1.8mm | ||
| Short side wall frame | Q235B Galvanizing square tube | 60*80mm t=1.8mm |
8 | pcs | 1.8mm | ||
| Corner pieces | 200mm*100mm | t=15mm | 8 | pcs | 15mm | ||
| Wall panel | 50 mm rock wool sandwich panel (Volume weight: 60KG/m³) |
0.326mm both sides color steel | 0.326mm | ||||
| Roofing | 75mm glass wool insulation layer | steel plate, thickness=0.5mm | 6 | pcs | 75mm | ||
| Ceiling | steel plate | t=0.326mm | 6 | pcs | 0.326mm | ||
| Board | MGO board | t=15mm | 5 | pcs | 15mm | ||
| Window | aluminum alloy sliding window | 950*1200mm | 2 | pcs | |||
| Door | steel door | 860*1980mm | 1 | pcs | |||
| electric appliance | 1 switch, 4 sockets, two LED light tubes, disctribution box | 1 | set | ||||
PROJECT CASES:
BOX SPACE will offer a range of technical support and service options to ensure that your product is running at its peak performance. Our technical team experts are available to provide advice and assistance with any technical issues you may experience. And our customer service team is also available to answer any questions or concerns you may have regarding your purchase.
