Fireproof Portable Site Office Container

Product Details

Place of Origin: CHINA

Brand Name: BOX SPACE

Certification: CE; SGS

Model Number: Detachable container

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: USD1295/unit

Packaging Details: Bubble films wrapped

Delivery Time: 7 days

Payment Terms: T/T

Supply Ability: 5000units per month

Get Best Price
Contact Now
Specifications
Highlight:

Fireproof Portable Site Office Container

,

Fireproof portable cabin site office

,

Portable Site Office Container Earthquake Proof

Size:
5950L*3000W*2800H Mm(Can Be Customized)
Frame:
Q235B Galvanized Steel
Wall:
50/75mm Rockwool Sandwich Panel
Floor:
18mm MGO/Cement Fiber Board
Roofing:
40mm Glass Wool Insulation Layer
Anti-rust:
110um Powder Coating+Galvanized
Color:
Customized
Installation:
Steel Door
Leadtime:
7 Days
Wind Resistence:
120KM/H
Anti-seismic:
Grade 8
Size:
5950L*3000W*2800H Mm(Can Be Customized)
Frame:
Q235B Galvanized Steel
Wall:
50/75mm Rockwool Sandwich Panel
Floor:
18mm MGO/Cement Fiber Board
Roofing:
40mm Glass Wool Insulation Layer
Anti-rust:
110um Powder Coating+Galvanized
Color:
Customized
Installation:
Steel Door
Leadtime:
7 Days
Wind Resistence:
120KM/H
Anti-seismic:
Grade 8
Description
Fireproof Portable Site Office Container

Southeast Asia Japan Hot Sale Portable Steel Frame House Prefabricated Container Home Office Bungalow Granny Flat

DETACHABLE

CONTAINER HOUSE



Fireproof Portable Site Office Container 0Fireproof Portable Site Office Container 1

Fireproof Portable Site Office Container 2

Product Description:

BOX SPACE Detachable container house comes with a knock-down system, which allows it to be loaded with far more quantity than any other products, It will do a great help for you to lower the shipping cost. So it's an ideal option for worker camp, tiny house, and site office.



It features a flat roof, insulation sandwich panel walls, a steel door and two windows, it's customizable in size and color. Installation is easy and fast, making it the perfect choice for those who need to set up quickly and efficiently. It's durable and reliable, providing a safe and secure living space that will last for over 15 years.



Fireproof Portable Site Office Container 3

Features:

  • Loading: 1*40HQ can load 17 units
  • Flexible customized size
  • No any big tools for installation
  • Strong wind and earthquake resistance







Structure:

Fireproof Portable Site Office Container 4

Fireproof Portable Site Office Container 5Fireproof Portable Site Office Container 6



Specifications:

Detachable container specifications
Specification Length * width * height (mm) Exterior Size:5950 × 3000 × 2800mm
Roof form Flat roof, drainage within the organization
The layer number ≤3layer
Datas Life time 15 years
Floor live load 2.0KN/
Roof live load 0.7KN/
Wind resistance 120KM/H
Anti earthquake standard Grade 8
Item Name Unit Qty Length Thickness
Frame
(all frame 110g galvanized technic)
Top beam Strip 2 5630mm 2.3mm
Strip 2 2680mm
Bottom beam Strip 2 5630mm
Strip 2 2680mm
Column Strip 4 2480mm
Corner piece pc 8 160x160x160mm 3.5mm
Slot Galvanized buckle groove Strip 2 5730mm 1.1mm
Strip 2 2800mm
Top & Bottom purlin & square tube
(galvanized technic)
Bottom purlin Strip 9 50*100*2990mm 1.2mm
Top purlin Strip 2 50*50*2800mm 1.5mm
Strip 3 40*80*1880mm 1.1mm
Strip 6 40*60*1880mm 1.0mm
Roof 980 type pressed tile pc 6 2950mm 0.5mm
Ceilling pc 6 2800mm 0.25mm
Floor MGO Board pc 5 1147*2800mm 18mm
Flooring PVC flooring roll 1   1.6mm
Wall panel both sides color steel 50mm rock wool sandwich panel
(Volumn weight: 60KG/m³)
pc 16 2560*950mm 0.326mm
Door Fire proof steel doors Set 1 950*2035 mm
Window UPVC sliding window Set 2 925*1200mm
Rub Tape Rub Tape pc 1
Roof insulation 40mm glass wool insulation layer Roll 1
Electric system Distribution box
including air opening, leakage protection
pcs 1
Wirings
220-250Voltage
4
for input
2.5
for socket/AC
1.5
for lights
Set 1
LED light, 36W pcs 2
Sockets
3 for sockets(10A)
1 for AC(16A)
pcs 4
Switch pcs 1







Applications:

Fireproof Portable Site Office Container 7CONTAINER WORKER DORMITORY



Detachable container house mostly would be used as worker dormitory, cause its low cost, easy installation, movable, and reusable.They will be put in construction sites as a temporary housing for workers, after the project done, these container house can be moved to another site and reuse again.


Room size: 5950L*3000W*2800H mm
Capacity: Each room suitable for 8 people living(can put 4 bunk beds)
Maximum can stack up 3 floors

Fireproof Portable Site Office Container 8

CONTAINER SITE OFFICE

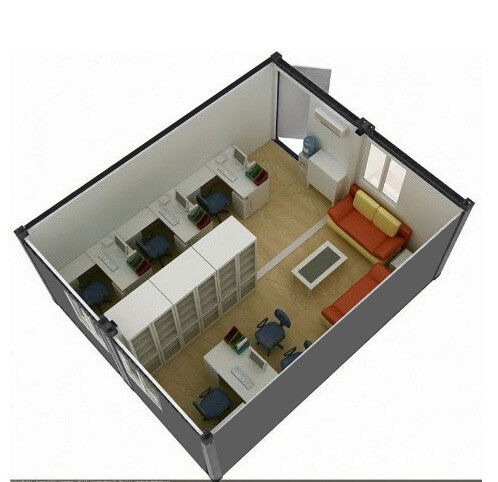

Detachable container house can be used as a construction site office, or personal backyard tiny office. Cause its low cost, easy installation, movable, and reusable.They will be alway put in construction sites as a temperary office for project managements. After the project done, these container office can be moved to another site and reuse again. And in order to create a bigger space for meeting rooms, receptions, we can even connect several units containers together. It's very flexible and modular. Besides, you can also add glass walls for the corridor like above pictures, which will make the whole building looks modern.


Standard container size: 5950L*3000W*2800H mm
Layout: Can be customized base on your needs, and divided into different functional areas.
Maximum can stack up 3 floors

Fireproof Portable Site Office Container 9

CONTAINER ISOLATION HOSPITAL



COVID-19 suffered all over China in 2019. Container house was used to build up a lot a isolation hospital at that time, in order to stop the virus from spreading. We are so honored to be one of the supplier to build up over 3 hospitals. A 500 beds hospital, will only need about 10 days to build up. This event brings out the best in the fast construction of container house.

Fireproof Portable Site Office Container 10

CONTAINER RESORT/HOTEL



Except to use in construction sites, now container house are very popular to be used as a countryside resort, motel or a backyard tiny house. It's a modular structure, so you can place them with a special design. And also you can add some glass walls, cladding, interior decoration boards to decorate your house. Trust me it would be a very nice space no matter for your personal, or for your family. Let's escape the city together and enjoy the nature of the countryside and beach.





Fireproof Portable Site Office Container 11

ADDITIONAL OPTIONS FOR YOUR CONTAINER HOUSE




Packing and Loading:



Fireproof Portable Site Office Container 12Fireproof Portable Site Office Container 13

Packing:
1. PVC bubble films to wrap the main beams;
2. Both sides stick protective films on all panel surfaces.

Loading:
One 20GP can load 7 standard units
One 40HQ can load 17 standard units





Detail Project Images:



Fireproof Portable Site Office Container 14Fireproof Portable Site Office Container 15Fireproof Portable Site Office Container 16Fireproof Portable Site Office Container 17

Fireproof Portable Site Office Container 18Fireproof Portable Site Office Container 19Fireproof Portable Site Office Container 20Fireproof Portable Site Office Container 21

Fireproof Portable Site Office Container 22Fireproof Portable Site Office Container 23Fireproof Portable Site Office Container 24



Fireproof Portable Site Office Container 25Fireproof Portable Site Office Container 26Fireproof Portable Site Office Container 27

Support and Services:

BOX SPACE will offer a range of technical support and service options to ensure that your product is running at its peak performance. Our technical team experts are available to provide advice and assistance with any technical issues you may experience. And our customer service team is also available to answer any questions or concerns you may have regarding your purchase.







Fireproof Portable Site Office Container 28
