Product Details
Place of Origin: CHINA
Brand Name: BOX SPACE
Model Number: Detachable container
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: USD1295/unit
Packaging Details: Bubble films wrapped
Delivery Time: 7 days
Payment Terms: T/T
Supply Ability: 5000units per month
Size: |
5950L*3000W*2800H Mm(Can Be Customized) |
Frame: |
Q235B Galvanized Steel |
Wall: |
50/75mm Rockwool Sandwich Panel |
Floor: |
18mm MGO/Cement Fiber Board |
Roofing: |
40mm Glass Wool Insulation Layer |
Anti-rust: |
110um Powder Coating+Galvanized |
Color: |
Customized |
Installation: |
Steel Door |
Leadtime: |
7 Days |
Wind Resistence: |
120KM/H |
Anti-seismic: |
Grade 8 |
Size: |
5950L*3000W*2800H Mm(Can Be Customized) |
Frame: |
Q235B Galvanized Steel |
Wall: |
50/75mm Rockwool Sandwich Panel |
Floor: |
18mm MGO/Cement Fiber Board |
Roofing: |
40mm Glass Wool Insulation Layer |
Anti-rust: |
110um Powder Coating+Galvanized |
Color: |
Customized |
Installation: |
Steel Door |
Leadtime: |
7 Days |
Wind Resistence: |
120KM/H |
Anti-seismic: |
Grade 8 |

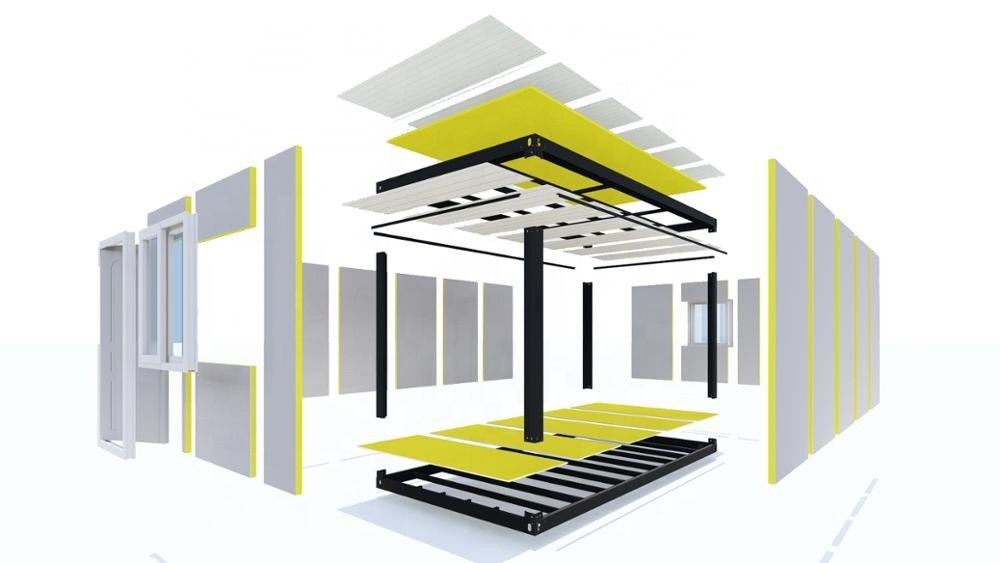

BOX SPACE Detachable container house comes with a knock-down system, which allows it to be loaded with far more quantity than any other products, It will do a great help for you to lower the shipping cost. So it's an ideal option for worker camp, tiny house, and site office.
It features a flat roof, insulation sandwich panel walls, a steel door and two windows, it's customizable in size and color. Installation is easy and fast, making it the perfect choice for those who need to set up quickly and efficiently. It's durable and reliable, providing a safe and secure living space that will last for over 15 years.
Structure:
Detachable container specifications | ||||||
Specification | Length * width * height (mm) | Exterior Size:5950 × 3000 × 2800mm | ||||
Roof form | Flat roof, drainage within the organization | |||||
The layer number | ≤3layer | |||||
Datas | Life time | 15 years | ||||
Floor live load | 2.0KN/㎡ | |||||
Roof live load | 0.7KN/㎡ | |||||
Wind resistance | 120KM/H | |||||
Anti earthquake standard | Grade 8 | |||||
Item | Name | Unit | Qty | Length | Thickness | |
Frame (all frame 110g galvanized technic) |
Top beam | Strip | 2 | 5630mm | 2.3mm | |
Strip | 2 | 2680mm | ||||
Bottom beam | Strip | 2 | 5630mm | |||
Strip | 2 | 2680mm | ||||
Column | Strip | 4 | 2480mm | |||
Corner piece | pc | 8 | 160x160x160mm | 3.5mm | ||
Slot | Galvanized buckle groove | Strip | 2 | 5730mm | 1.1mm | |
Strip | 2 | 2800mm | ||||
Top & Bottom purlin & square tube (galvanized technic) |
Bottom purlin | Strip | 9 | 50*100*2990mm | 1.2mm | |
Top purlin | Strip | 2 | 50*50*2800mm | 1.5mm | ||
Strip | 3 | 40*80*1880mm | 1.1mm | |||
Strip | 6 | 40*60*1880mm | 1.0mm | |||
Roof | 980 type pressed tile | pc | 6 | 2950mm | 0.5mm | |
Ceilling | pc | 6 | 2800mm | 0.25mm | ||
Floor | MGO Board | pc | 5 | 1147*2800mm | 18mm | |
Flooring | PVC flooring | roll | 1 | 1.6mm | ||
Wall panel | both sides color steel 50mm rock wool sandwich panel (Volumn weight: 60KG/m³) |
pc | 16 | 2560*950mm | 0.326mm | |
Door | Fire proof steel doors | Set | 1 | 950*2035 mm | ||
Window | UPVC sliding window | Set | 2 | 925*1200mm | ||
Rub Tape | Rub Tape | pc | 1 | |||
Roof insulation | 40mm glass wool insulation layer | Roll | 1 | |||
Electric system | Distribution box including air opening, leakage protection |
pcs | 1 | |||
Wirings 220-250Voltage 4㎡ for input 2.5㎡ for socket/AC 1.5㎡ for lights |
Set | 1 | ||||
LED light, 36W | pcs | 2 | ||||
Sockets 3 for sockets(10A) 1 for AC(16A) |
pcs | 4 | ||||
Switch | pcs | 1 |
Project cases:
BOX SPACE will offer a range of technical support and service options to ensure that your product is running at its peak performance. Our technical team experts are available to provide advice and assistance with any technical issues you may experience. And our customer service team is also available to answer any questions or concerns you may have regarding your purchase.
